 Posted: Sun Mar 21, 2010 2:44 pm Post subject: |
  |
|
| damn mart, but i hope that the new crank you ordered works out. |
|
| |
|
|
|
|
|
|
|
|
Sponsor
|
|
|
|
|
|
|
|
|
Mart 300r
Roostin Away
Joined: 02 Jun 2008
Posts: 944
|
| Posted: Sun May 09, 2010 1:46 pm Post subject: |
|
|

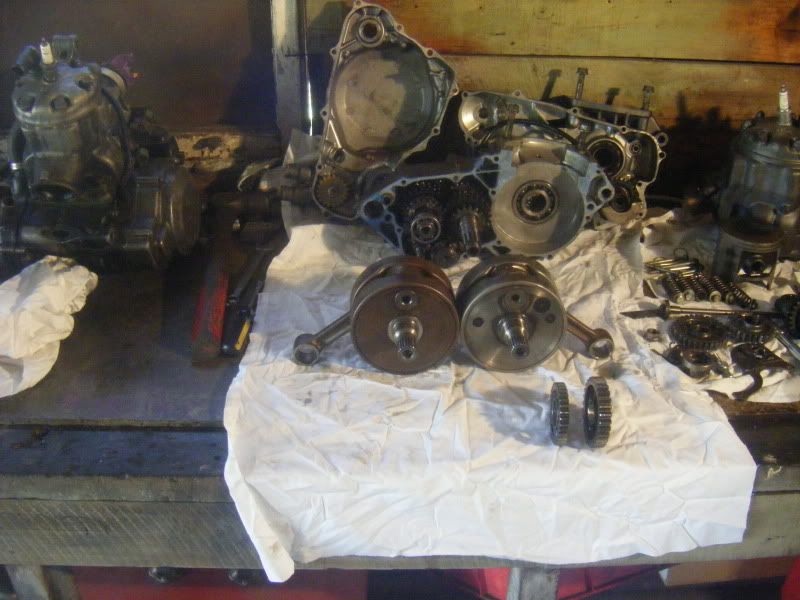

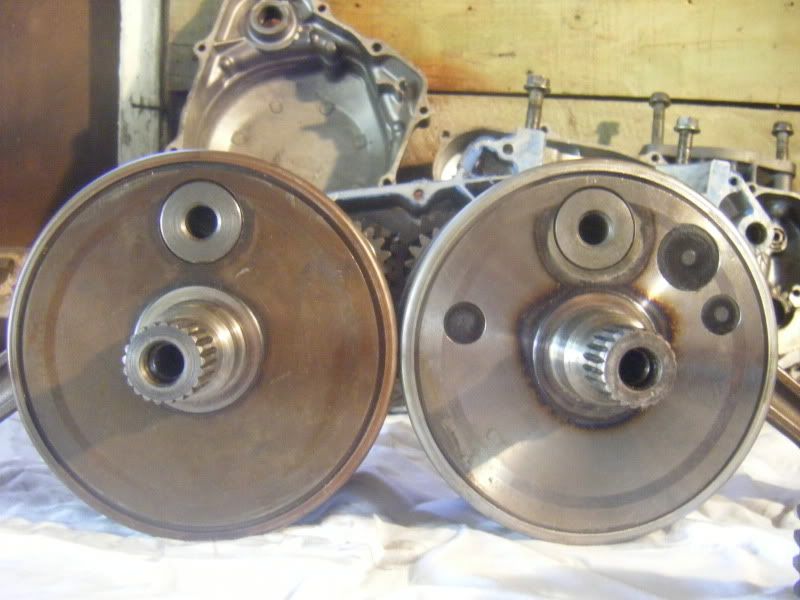

Hey just abit of an update as to where im at with this thing.pulled the motor down last night took out the crank now just gotta put it back together with the standard crank (on the left in photo)you can see the other crank where it has been balanced.also added a photo of the size of the tranny gears in these monsters on the left is a gear out of watercooled 250r on the right is the countershaft 1st gear out of the 500 massive ay lol.Well some more updates to come shortly as i try an get this thing goin.
_________________
1984 ATC 300R, 1986 TRX 500R,1984 ATC 200X, ATC 70 WITH CUSTOM LAYDOWN 250R ENGINE, 125CC CUSTOM THUMPSTER TRIKE |
|
| |
|
|
|
|
|
|
|
|
cowchaser
The Day Starts With OZATV !
Joined: 14 Feb 2006
Posts: 1618
Location: Warrnambool
|
| Posted: Sun May 09, 2010 6:32 pm Post subject: |
|
|
Sh!t Mart I keep forgetting about that pipe sorry dude i'll get onto it
_________________
Smitty |
|
| |
|
|
|
|
|
|
|
|
HaggLE
Roostin Away
Joined: 16 Mar 2009
Posts: 511
Location: Newcastle
|
| Posted: Sun May 09, 2010 9:05 pm Post subject: |
|
|
| bloody 500 singles, so large they could swallow a small passing bird whole! |
|
| |
|
|
|
|
|
|
|
|
Mart 300r
Roostin Away
Joined: 02 Jun 2008
Posts: 944
|
| Posted: Mon May 10, 2010 4:18 pm Post subject: |
|
|
| cowchaser wrote: | | Sh!t Mart I keep forgetting about that pipe sorry dude i'll get onto it |
Thats sweet mate i shoulda replied to ya pm theres no real rush mate.but yeh well sought it out for sure
_________________
1984 ATC 300R, 1986 TRX 500R,1984 ATC 200X, ATC 70 WITH CUSTOM LAYDOWN 250R ENGINE, 125CC CUSTOM THUMPSTER TRIKE |
|
| |
|
|
|
|
|
|
|
|
4stroker
Joined: 15 Jan 2007
Posts: 1420
Location: North Queensland
|
| Posted: Wed May 12, 2010 11:31 am Post subject: |
|
|
update mart!?!
_________________
2002 SE Banshee |
|
| |
|
|
|
|
|
|
|
|
Mart 300r
Roostin Away
Joined: 02 Jun 2008
Posts: 944
|
| Posted: Wed May 12, 2010 4:45 pm Post subject: |
|
|
| 4stroker wrote: | | update mart!?! |
Still sittin on bench mate.Actually been fixin my fish tank of all things lol bloody tempramental things they are.Should be gettin some of it done tonight.I really am goin to be tryin so hard to get it to grass tree im so keen on that.
_________________
1984 ATC 300R, 1986 TRX 500R,1984 ATC 200X, ATC 70 WITH CUSTOM LAYDOWN 250R ENGINE, 125CC CUSTOM THUMPSTER TRIKE |
|
| |
|
|
|
|
|
|
|
|
Mart 300r
Roostin Away
Joined: 02 Jun 2008
Posts: 944
|
| Posted: Sun Jun 27, 2010 10:30 am Post subject: |
|
|
Well spent most of yesterday at work,Finishin up all the mounts (properly)lol all solid mounted now.Got rid of all the rubber.standard crank in it mounted fuel tank filled up with gearbox oil coolant and started the big girl wwwwwwwwwwwwooooooooooooooooooowwwwwwwwwwwww what a difference not barely any vibes at all until 3/4 full throttle and than some start comin back altough pretty dam little ones at that but i still think im gunna go heavier to get rid of it all cause it aint perfect but oh god its made the biggest difference.One huge difference i noticed was when i reved it the front only dips a tiny bit now.I pulled the balancer out an started it just to see the difference oh god reved it the front drops about 50mm vibes all the way through but at 3/4 full throttle the old jack hammer effect starts lol no way it would last more than a ride.The tank mount bolts undid themselves and fell on the floor while i was tryin it now thats sayin somethin.
_________________
1984 ATC 300R, 1986 TRX 500R,1984 ATC 200X, ATC 70 WITH CUSTOM LAYDOWN 250R ENGINE, 125CC CUSTOM THUMPSTER TRIKE |
|
| |
|
|
|
|
|
|
|
|
dynamitediscodave
Roostin Away
Joined: 27 Aug 2009
Posts: 569
Location: arm chair in front of xbox
|
| Posted: Sun Jun 27, 2010 11:43 am Post subject: |
|
|
damn good news mart. good to hear some success
_________________
ltr450 with un-broken stuff
Thanks to: HST, Roycroft, AUSTRACO, ATV's Unlimited, Hardiman and Casper |
|
| |
|
|
|
|
|
|
|
|
OUTLAW_72
90cc 2 stroke / 110 4 stroke
Joined: 08 Jun 2010
Posts: 98
Location: Adelaide
|
| Posted: Sun Jun 27, 2010 6:19 pm Post subject: |
|
|
Tried some nice soft urethane on the mount points??
NOT the RED stuff..way too hard.
Counter balance approach looks good,... may take the B flat harmonic out the chassis lol.
Good luck with it dude.
I think there is alot of people wanting to know how this one turns out.. thats mad .....I want one!!!!
Maybe a single large mount to the bottom allowing the motor to move more, instead of the sandwich plates approach either side which may in its self be adding to the problem.
Youll work it out mate .. all the best.
_________________
Consistency..... The last refuge for the unimagenative. |
|
| |
|
|
|
|
|
|
|
|
Mart 300r
Roostin Away
Joined: 02 Jun 2008
Posts: 944
|
| Posted: Sun Jun 27, 2010 8:10 pm Post subject: |
|
|
| RaptrRoost wrote: | Tried some nice soft urethane on the mount points??
NOT the RED stuff..way too hard.
Counter balance approach looks good,... may take the B flat harmonic out the chassis lol.
Good luck with it dude.
I think there is alot of people wanting to know how this one turns out.. thats mad .....I want one!!!!
Maybe a single large mount to the bottom allowing the motor to move more, instead of the sandwich plates approach either side which may in its self be adding to the problem.
Youll work it out mate .. all the best. |
Tried it all mate lots of different rubbers.Solid mounting it was the biggest improvement bar counterbalancin it.There was adude in the states built one i read the story on his he also went the rubber way and before long eneded up solid mountin his.
_________________
1984 ATC 300R, 1986 TRX 500R,1984 ATC 200X, ATC 70 WITH CUSTOM LAYDOWN 250R ENGINE, 125CC CUSTOM THUMPSTER TRIKE |
|
| |
|
|
|
|
|
|
|
|
OUTLAW_72
90cc 2 stroke / 110 4 stroke
Joined: 08 Jun 2010
Posts: 98
Location: Adelaide
|
| Posted: Sun Jun 27, 2010 8:29 pm Post subject: |
|
|
Cool ... I did actually miss a couple of pages of this thread ... sorry man.. this rocket is gonna turn out killer.
Great to see you are doing it yourself. good old ozzy have a go!!!!
I have an engineering business and when i am not working I am always at home thinking up some new project for my spare time.. gotta love it !!
_________________
Consistency..... The last refuge for the unimagenative. |
|
| |
|
|
|
|
|
|
|
|
Mart 300r
Roostin Away
Joined: 02 Jun 2008
Posts: 944
|
| Posted: Sun Jun 27, 2010 9:00 pm Post subject: |
|
|
| RaptrRoost wrote: | Cool ... I did actually miss a couple of pages of this thread ... sorry man.. this rocket is gonna turn out killer.
Great to see you are doing it yourself. good old ozzy have a go!!!!
I have an engineering business and when i am not working I am always at home thinking up some new project for my spare time.. gotta love it !! |
Oh mate im always thinkin things to build in my head.Sometimes its bad though because ill be all into one of my projects then off i go onto a new idea lol.Without havin such a good boss to work for none of this could be possible they let me use the shed when i want(fabrication business)so big thanks to them.Thanks for the comments mate speaking of enginering ive just got a whole heap of machines lathe mill etc now i just gotta work out how to use em properly lol.
_________________
1984 ATC 300R, 1986 TRX 500R,1984 ATC 200X, ATC 70 WITH CUSTOM LAYDOWN 250R ENGINE, 125CC CUSTOM THUMPSTER TRIKE |
|
| |
|
|
|
|
|
|
|
|
OUTLAW_72
90cc 2 stroke / 110 4 stroke
Joined: 08 Jun 2010
Posts: 98
Location: Adelaide
|
| Posted: Sun Jun 27, 2010 9:26 pm Post subject: |
|
|
youll work it out mate
biggest thing with a new comer on that type of equipment is have a go at anything because confidence on the machine is king... but formostly SPEEDS AND FEEDS.... get these correct with tool type familiarisation and your laughing... have a blast.. with those types of resourses there are no limits..
_________________
Consistency..... The last refuge for the unimagenative. |
|
| |
|
|
|
|
|
|
|
|
Mart 300r
Roostin Away
Joined: 02 Jun 2008
Posts: 944
|
| Posted: Sun Jun 27, 2010 9:29 pm Post subject: |
|
|
| RaptrRoost wrote: | youll work it out mate
biggest thing with a new comer on that type of equipment is have a go at anything because confidence on the machine is king... but formostly SPEEDS AND FEEDS.... get these correct with tool type familiarisation and your laughing... have a blast.. with those types of resourses there are no limits.. |
Yeh on the lathe the hardest part i find is the speeds and the type of cutter just as you said.But yeh the sky is goin to be the limit with bein able to weld alloy and all metals oh the possibilities lol
_________________
1984 ATC 300R, 1986 TRX 500R,1984 ATC 200X, ATC 70 WITH CUSTOM LAYDOWN 250R ENGINE, 125CC CUSTOM THUMPSTER TRIKE |
|
| |
|
|
|
|
|
|
|
|
Mart 300r
Roostin Away
Joined: 02 Jun 2008
Posts: 944
|
| Posted: Sat Jul 10, 2010 8:43 pm Post subject: |
|
|

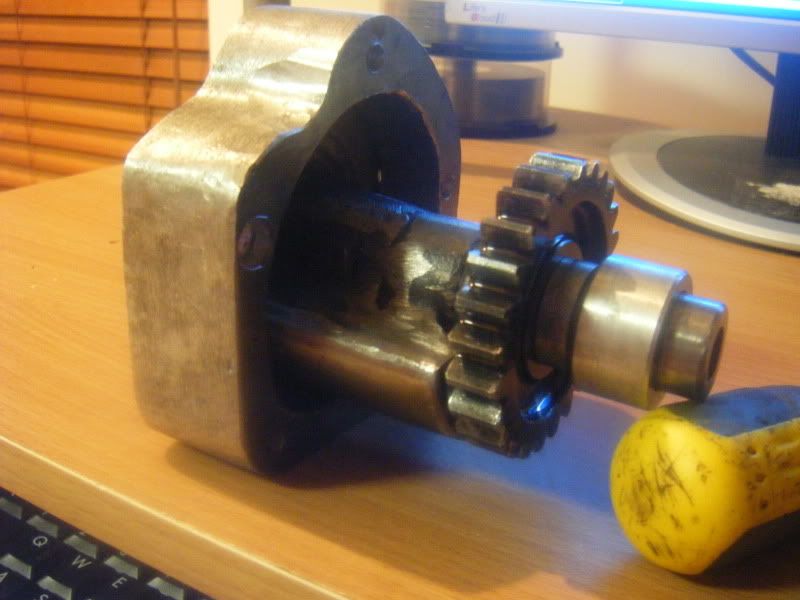

Another update,Spent all day today at work turnin up a new shaft for the balancer and adding more weight (lentgthing it)also had to make the outside cover/case wider to accept the wider balancer also tidy up alot of other stuff.Balancer now weighs in at just over 800grams so i think its gunna be spot on now double the weight.Didnt get the chance to start it as it took so long turnin up new shafts and weldin an truing things up.I will have a full story on how it runs tmoz arvo as im goin back over to work to do more to it.Heres some photos any ways cheers fellas!

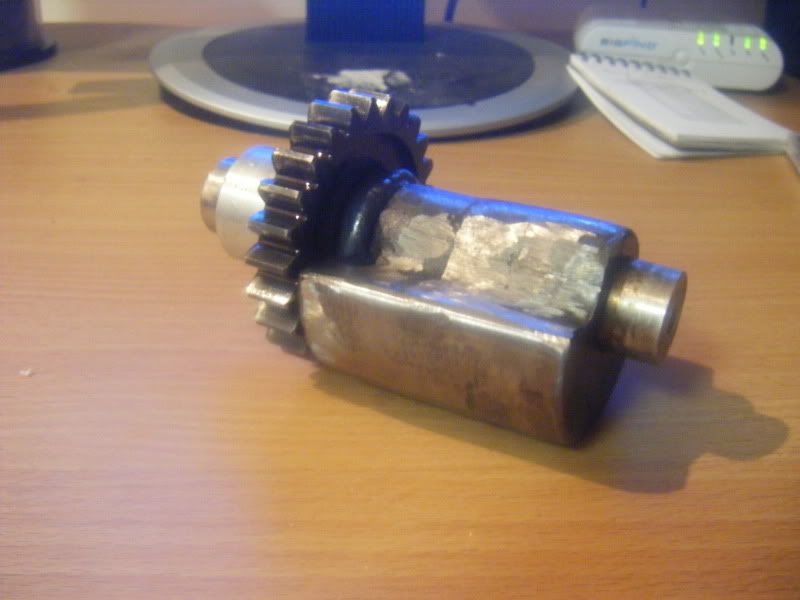

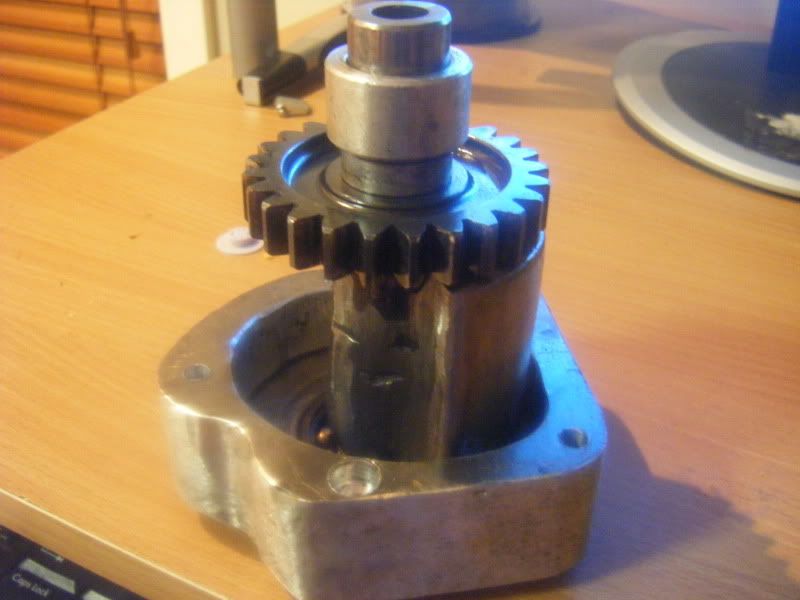

this is the weight how it sits inside the outer cover^
weight assembled ^

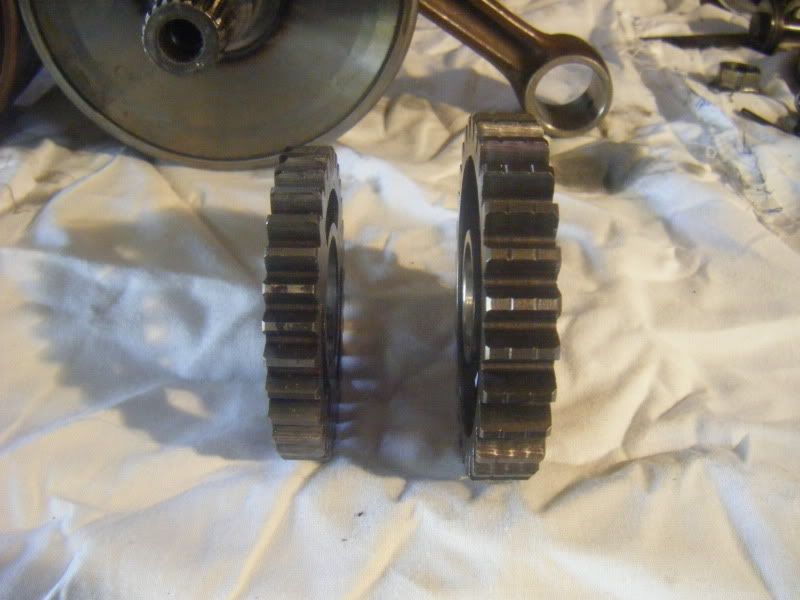

stock 84 250r counter balancer weight ^

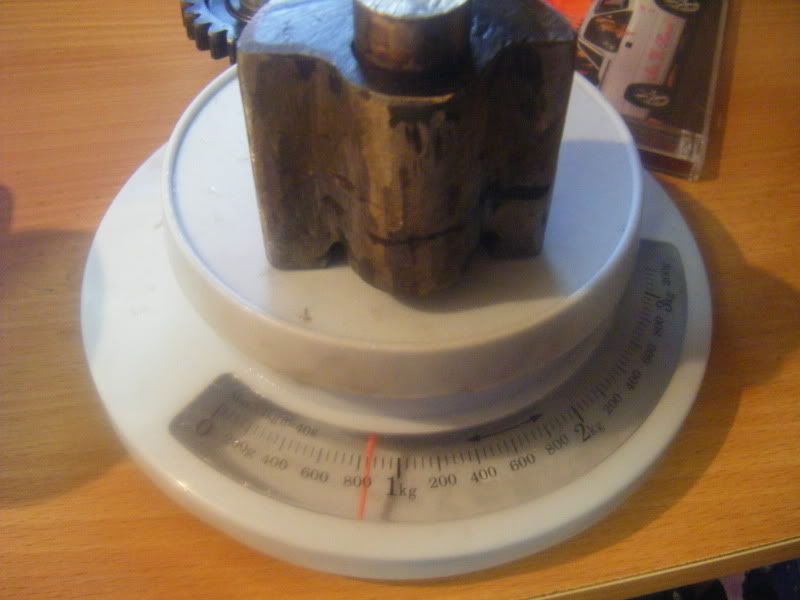

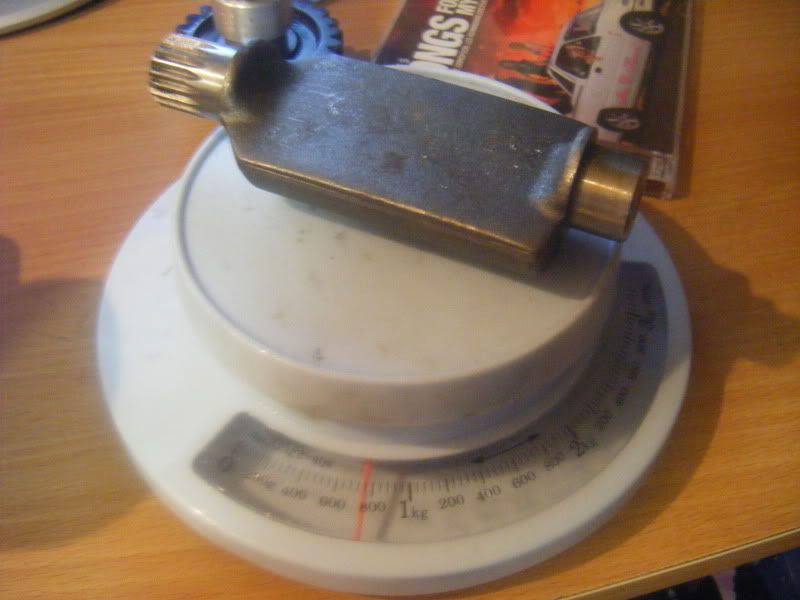

weight of balancer now ^

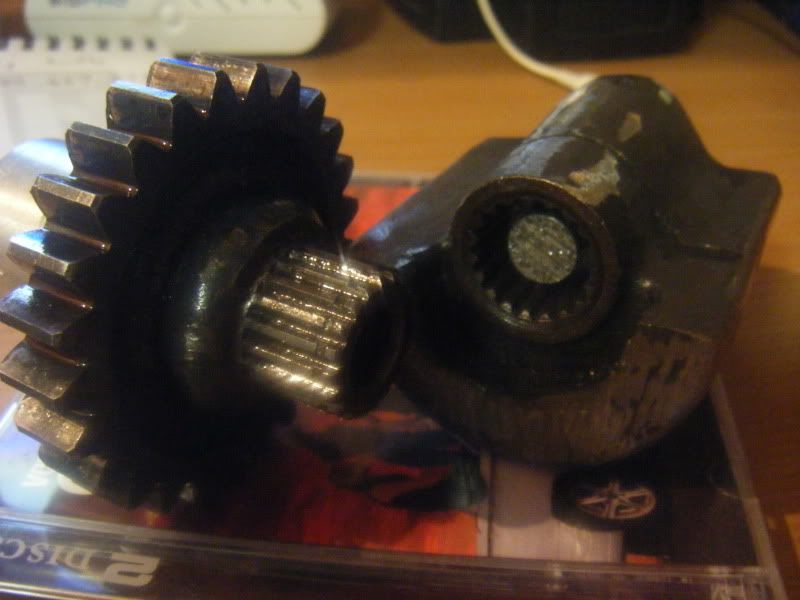

Balancer actually seperates ^
_________________
1984 ATC 300R, 1986 TRX 500R,1984 ATC 200X, ATC 70 WITH CUSTOM LAYDOWN 250R ENGINE, 125CC CUSTOM THUMPSTER TRIKE |
|
| |
|
|
|
|
|
|
|
|
4stroker
Joined: 15 Jan 2007
Posts: 1420
Location: North Queensland
|
| Posted: Mon Jul 12, 2010 11:19 am Post subject: |
|
|
mart how did ya go is it running yet?
also did i see right, a 250R c/b is 800 grams??
_________________
2002 SE Banshee |
|
| |
|
|
|
|
|
|
|
|
Mart 300r
Roostin Away
Joined: 02 Jun 2008
Posts: 944
|
| Posted: Mon Jul 12, 2010 4:16 pm Post subject: |
|
|
| 4stroker wrote: | mart how did ya go is it running yet?
also did i see right, a 250R c/b is 800 grams?? |
Yeh mate got her running vibes are there but very very minamal now easlly rideable i think ive counter balanced it as much as it can.i reckon the flywheel is way to small and light on these engines.ok in the bike but as soon as it gets in the quad you need a heavy flywheel im also goin to look at getting a weight on it or even try fitting somethin off somethin else like 250r or somethingive got a couple of little bugs to sort out but yeh over all mate im so stoked how this has turned out.i got my new pipe for it on saturday so thats the next stage fittin that i just bought a fmf gnarley and am goin fit that should work ok.later on down the track ill look at porting and different pipes an stuff but i just wanna get it goin for now im sick of lookin at it and not ridin the big girl.
Yeh mate stock 84r is abit under 800 not sure how accurate those scales are (there kezzas kitcken ones lol)water cooled 250r ones are lighter due to haven a full circle crank where as the 84's arent full circle .I reckon adding weight to this flywheel will get rid of the last of the vibes (I HOPE LOL  )
Also mate ive been tryin to call that dude about mackay cant get through to him ay.
_________________
1984 ATC 300R, 1986 TRX 500R,1984 ATC 200X, ATC 70 WITH CUSTOM LAYDOWN 250R ENGINE, 125CC CUSTOM THUMPSTER TRIKE |
|
| |
|
|
|
|
|
|
|
|
Mart 300r
Roostin Away
Joined: 02 Jun 2008
Posts: 944
|
| Posted: Fri Aug 20, 2010 6:24 am Post subject: |
|
|
Hey all heres a little video i did of it last night felt like a d%ck head talkin into a camera but it shows abit about the quad and it idling
http://www.youtube.com/watch?v=j0Fr1gQ9W_4
_________________
1984 ATC 300R, 1986 TRX 500R,1984 ATC 200X, ATC 70 WITH CUSTOM LAYDOWN 250R ENGINE, 125CC CUSTOM THUMPSTER TRIKE |
|
| |
|
|
|
|
|
|
|
|
Mart 300r
Roostin Away
Joined: 02 Jun 2008
Posts: 944
|
| Posted: Wed Sep 22, 2010 6:24 am Post subject: |
|
|
Gday gday heres yet another little vid demonstrating the difference in the vibes with the quad running with the balancer weight in and the weight out pretty amazing!!
http://www.youtube.com/watch?v=5-ZM6NxYIkI
_________________
1984 ATC 300R, 1986 TRX 500R,1984 ATC 200X, ATC 70 WITH CUSTOM LAYDOWN 250R ENGINE, 125CC CUSTOM THUMPSTER TRIKE |
|
| |
|
|
|
|
|
|
|
|
Clarkie
The Day Starts With OZATV !
Joined: 26 Jan 2009
Posts: 1138
Location: Mildura VIC
|
| Posted: Wed Sep 22, 2010 9:00 am Post subject: |
|
|
Thats Posh
_________________
Has turned to the Dark Side! |
|
| |
|
|
|
|
|
|
|
|
Mart 300r
Roostin Away
Joined: 02 Jun 2008
Posts: 944
|
| Posted: Thu Sep 23, 2010 6:04 am Post subject: |
|
|
| Clarkie wrote: | | Thats Posh |
lol thanks mate
_________________
1984 ATC 300R, 1986 TRX 500R,1984 ATC 200X, ATC 70 WITH CUSTOM LAYDOWN 250R ENGINE, 125CC CUSTOM THUMPSTER TRIKE |
|
| |
|
|
|
|
|
|
|
|
Ol Deuce
50cc nipper
Joined: 29 Apr 2010
Posts: 34
Location: Montana
|
| Posted: Mon Oct 18, 2010 11:48 am Post subject: |
|
|
What a killer build on your QUAD .......Good Show Man
Ol Deuce |
|
| |
|
|
|
|
|
|
|
|
quickquadpro
50cc nipper
Joined: 06 Dec 2011
Posts: 1
|
| Posted: Tue Dec 06, 2011 9:24 pm Post subject: balancer |
|
|
| I have questions. Are you willing to answer any yet? I am building my conversion and am going to tackle a balancer. Can you be more detailed about the balancers weight and length. How did you derive the needed weight? What gear did you use? It has to be 1:1 I know, but was it a primary also? Any help would be appreciated. |
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
